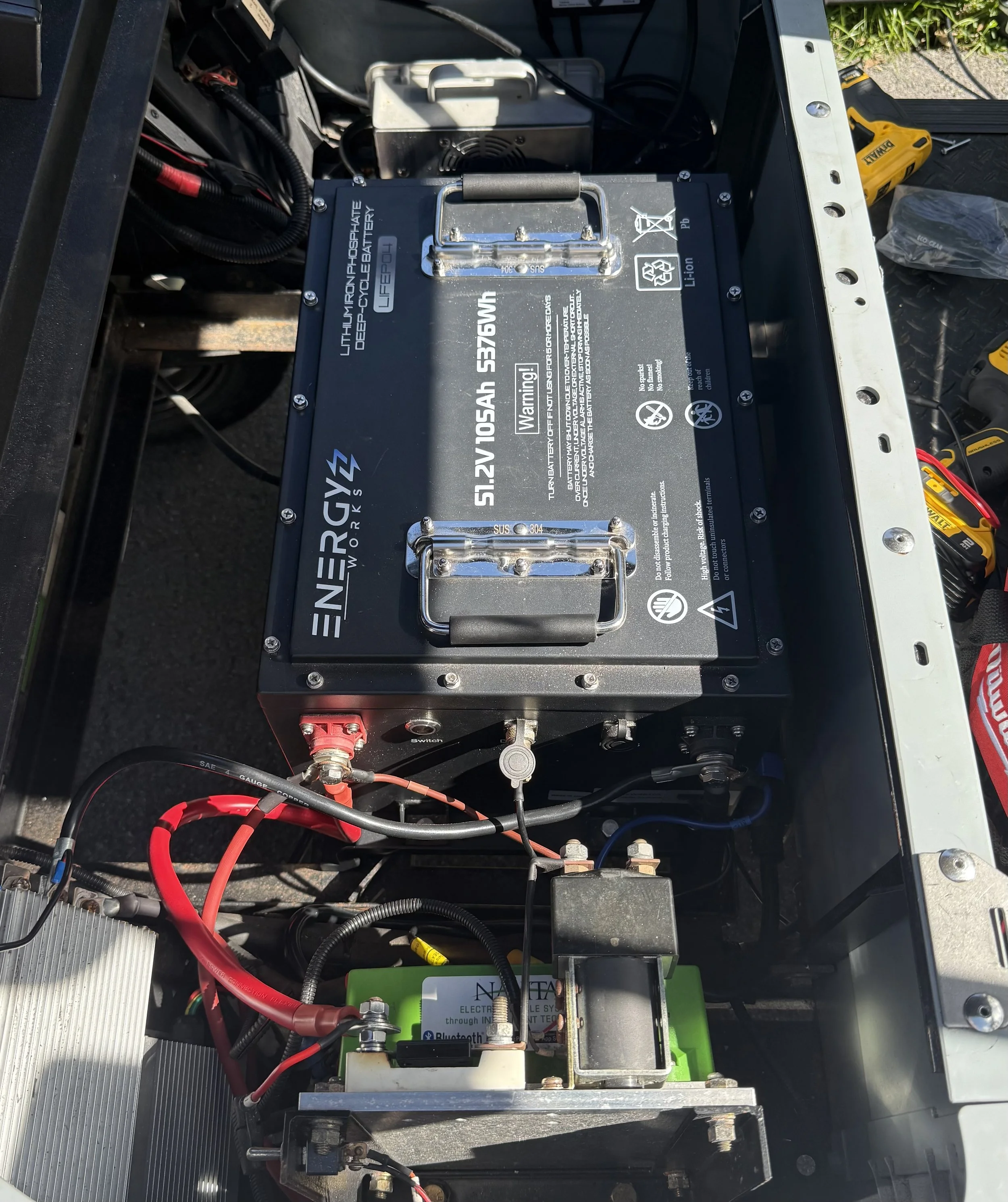

Energy Works 48V 105AH Lithium Golf Cart Battery Package

This is the ultimate package to upgrade your 48V Electric Golf Cart to a single, much lighter, and longer range Lithium Iron Phosphate LiFePO4 battery pack. Engineered specifically for 48V golf carts, this battery pack packs a massive energy density, and features Bluetooth monitoring via app, an IP66 waterproof rating, 304 stainless hardware, a remote battery monitoring meter, and a battery on/off switch to conserve pack power when not using your golf cart. Typical expected range of this 105AH battery is around 35-50 miles, depending on driving style, amount of passengers, and how much uphill driving.

The on-board battery management system(BMS) is capable of outputting 250A of power continuously to your motor, and 500A peak for 5 seconds, meaning it will work with factory, or upgraded motor controllers.

All batteries include a limited 10 year pro-rated warranty against any manufacturer defects.

Will fit most golf cart brands, some modification to battery compartment may be required to fit depending on cart brand, this battery has a much smaller footprint than the factory lead acid configuration. Battery must be bolted to frame using the supplied universal brackets, or the mounting ears on the battery, We always recommend professional installation and hook-up. Included universal mounting brackets will fit most carts, please check all dimensions before ordering.

Will not fit Club Car DS "A-Frame" models.

Included in this package:
- 48V 105AH LiFePO4 Golf Cart Battery
- 48V 20A Waterproof Charger & AC Power Cable
- Battery Monitoring Meter (Remote mount)
- Universal Mounting Brackets & Hardware
- Waterproof AC Plug & Bulkhead Panel
- Stainless Steel Terminal Hardware
- Terminal Safety Caps
- Lead Acid Battery Removal Strap

Features:

• Wireless Monitoring via Bluetooth App (Apple/Android compatibility)

• Long Life, 3000-5000 Total Cycles(compared to 500-800 for AGM)

• Ultra Safe, Built-In BMS battery protection

• UL1642, IEC62619, CE, UN38.3 Listed & Certified

• Fast Charging & Low Self-Discharge (3% per month)

• Zero Maintenance Needed

• Minimal Footprint

• 60-70% Lighter than Lead-Acid Battery Configuration

• 100% Depth of Discharge Rated(DOD)

• Cold Temperature Charging Protection (disables charging at 32 deg F)

• IP66 Waterproof

• Battery Main Power On/Off Switch

• 304 Stainless Carry Handles for Easy Installation and Removal

• Safe, Environmentally Friendly, Pollution Free

• Stainless Steel Terminal Hardware Included

• 20A Waterproof On-Board Quick Charger

• Universal Powder Coated Steel Mounting Brackets for Most Carts w/ Mounting Hardware

• Waterproof AC Power Plug & Bulkhead Plate for Charger

Specifications:

• Nominal Voltage: 51.2V

• Rated Capacity: 105Ah

• Energy: 5.37Kwh

• Discharge Ending Voltage: 40V

• Charging Voltage: 58.4

• Recommended Charging Current: 10A - 30A

• Max Charging Current (BMS Limit): 100A

• Max Continuous Discharge Current: 250A , 500A Peak 5s

• Cycle Life: 3000-5000 (dependent on discharge rate and depth)

• Dimensions (LxWxH): 18.58" x 12.28 " x 9.57" inches, mounting ear width: 5.25”

• Bracket Dimensions (LxWxH): 11.56” x 3.25” x 1.5”, frame mounting hole width: 10.75”

• Cell Type: EVE Grade A, Prismatic, Series-Parallel Configuration

• BMS Type: Smart 48V 16S High-Output 500A BT/UART

• Weight: Approx. 102 lbs.

• Low Temperature Charging Cutoff: 0 Deg C / 32 Deg F

• Charge Temperature: Charging: 0-45 Deg C/Discharging:-20 to 60 Deg C

• Storage Temperature: -4 -140F

• Water/Dust Resistance Rating: IP66

• Certification: CE/ROHS/FCC/UN38.3/MSDS

• Terminal Thread Size: M8

• Case Material: Powder Coated Steel

• Hardware Material: 304 Stainless Steel



  FREE UPS Ground Shipping to Mainland USA

  Status: In Stock
